Raceworks

620 Series Black Aluminium Hard Line

  • Sale
  • Regular price $59.99
Tax included.

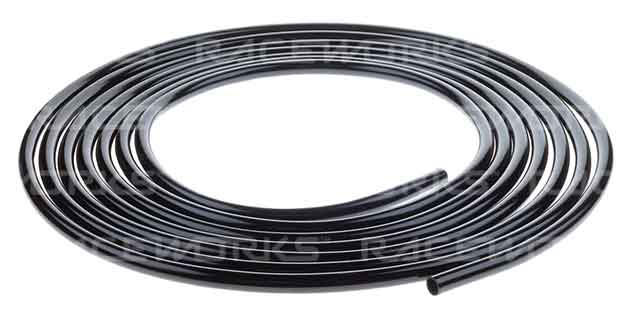

Raceworks 620 Series Black Aluminium Hard Line is extruded from lightweight, seamless aluminium tube. It is available in four different sizes, and we recommend using a tube bender, to minimise flaking of the black coating on the bends. Should this happen, it has no effect on the integrity and corrosion resistance of the aluminium line. We also have a tube straightener available, RWT-014.

Wall thickness of 1mm. Ethanol & Methanol safe.

7M Length Part Number AN Operating Pressure Burst Pressure Inside dia Inch Inside dia mm Outside dia Inch Outside dia mm Weight (gm/m) Finish
RWH-620-05 -5 1400psi 2100psi 15/64″ 5.9mm 5/16″ 7.9mm 61g Black Anodised Outer, Raw Inner
RWH-620-06 -6 1100psi 1700psi 19/64″ 7.5mm 3/8″ 9.5mm 75g Black Anodised Outer, Raw Inner
RWH-620-08 -8 550psi 1100psi 27/64″ 10.7mm 1/2″ 12.7mm 104g Black Anodised Outer, Raw Inner
RWH-620-10 -10 420psi 550psi 35/64″ 13.9mm 5/8″ 15.8mm 128g Black Anodised Outer, Raw Inner
